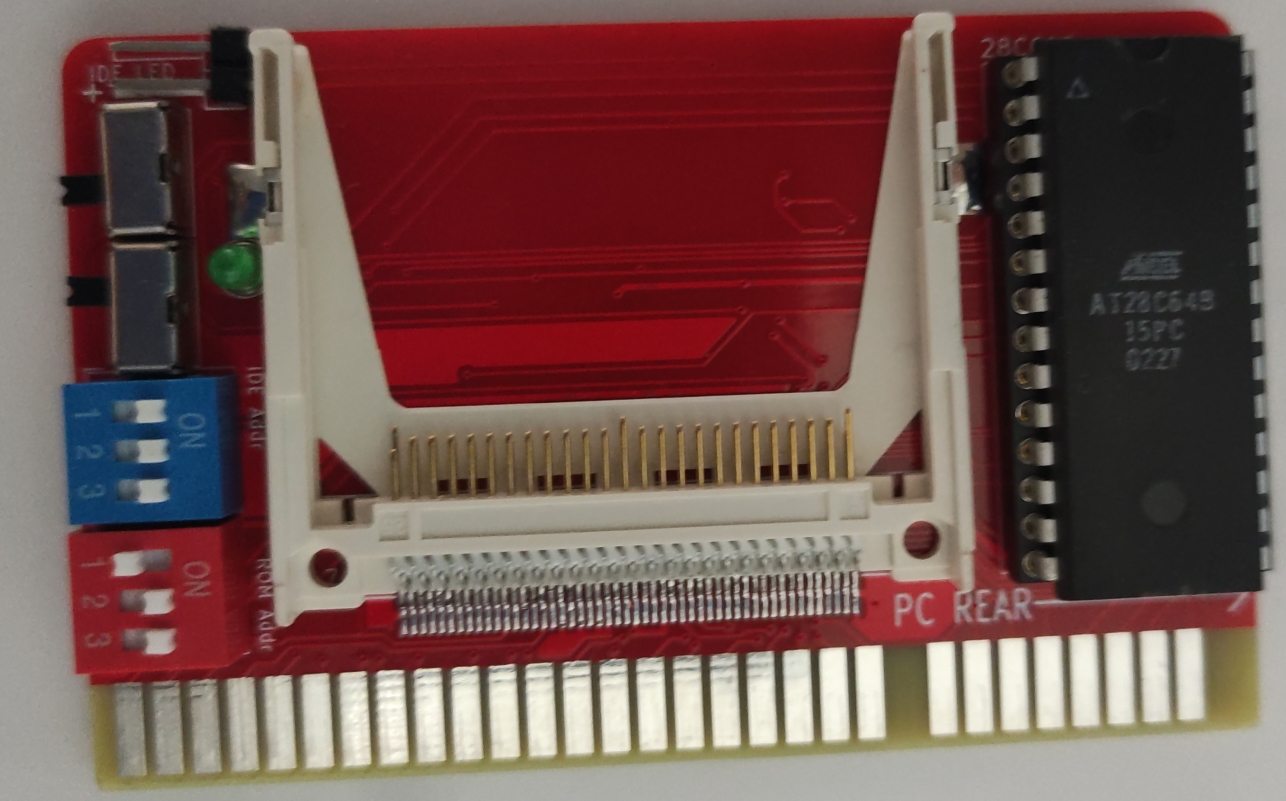

XT-CF CompactFlash ISA Adapter

The XT-CF allows you to quickly and easily use a CompactFlash card with any PC-compatible system - ranging from XT to Pentium-class.

Our version of this adapter comes fully configured and has edge bevelling on the connector for easier insertion into the motherboard.

Available ROMs to choose from (please specify your requirement at the review stage during checkout):

XT - for 8088 or 8086 machines
XTP - for NEC V20-based 8088 machines
AT - for 286-class machines
PS2 - for PS/2 models
386 - for modern machines - will work on anything 386 or newer.

The card will ship with the 386 ROM if no ROM is specified in the review notes during the checkout process.

The card is shipped with the following configuration:
-Firmware revision 625
-EEPROM at 0xD000 and I/O at 0x300
-Boot to floppy first and then to HDD

Realistic transfer speed of this card is anywhere from 400KB-600KB per second.
